MPPT Chargers
MPPT Chargers INFO
ET4415BND US$409.00
ET6415BND US$460.00
New eTracer is an industrial grade product with advanced Maximum Power Point Tracking (MPPT) algorithm. It can deliver the maximum available power for charging batteries and charge a lower nominal voltage battery from a higher nominal voltage array. And can be applied in the off-grid PV systems up to 3KW. The die-cast aluminum design ensures excellent heat dispersion.
These are an excellent unit for charging Nife batteries.
Model |
ET4415BND |
ET6415BND |
Nominal system voltage |
12/24/36/48V auto work |
|
Rated battery current |
45A |
60A |
Max. PV open circuit voltage |
150V(at minimum operating environment temperature) |
|
MPP voltage range |
VBAT+2V～108V |
|
Max. PV input power |
600W (12V) |
800W (12V) |
1200W (24V) |
1600W (24V) |
|
1800W (36V) |
2400W (36V) |
|
2400W (48V) |
3200W (48V) |
|
Self-consumption |
1.4~2.2W |
|
Equalize charging voltage |
Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V |
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, |
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V |
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V, User-defined: 9~17V |
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V |
|
Grounding |
Common negative |
|
LCD temp. range |
-20℃ ~ +70℃ |
|
Ambient temp. range |
-25℃～+50℃ |
|
Storage temp. range |
-30℃～+85℃ |
|
Humidity range |
≤95% N.C. |
|
Enclosure |
IP20 |
|
Overall dimension |
398.6x208x107mm |
449x208x107mm |
Terminal |
35mm2 |
35mm2 |
Net Weight |
4.3kg |
5.5kg |

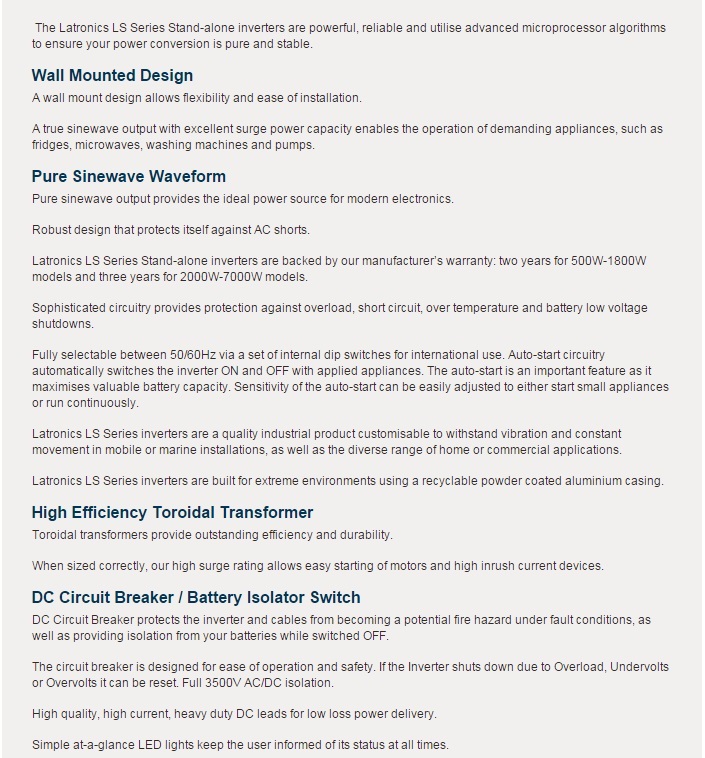

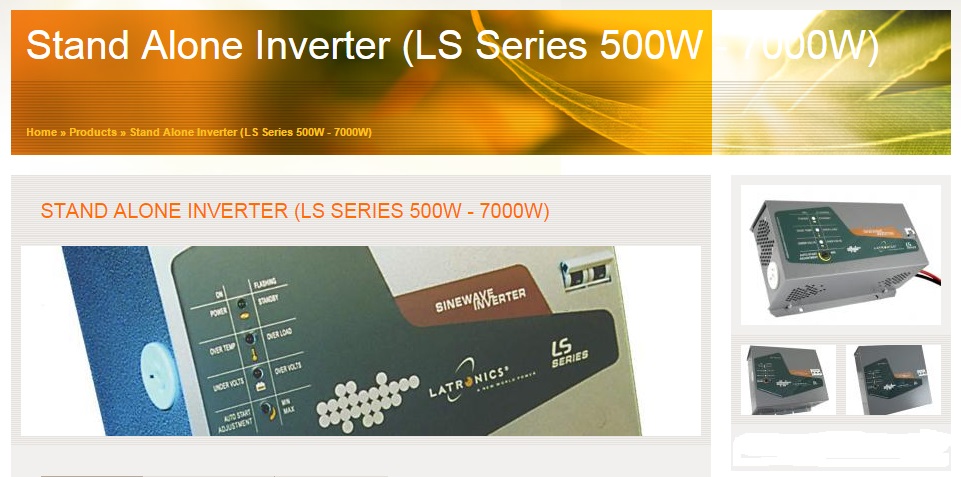

Off Grid Inverters
12-48 Volt Models available 500-7000 Watts
Australian made with up to a 3 Year warranty.
Call for pricing to suit your application.
